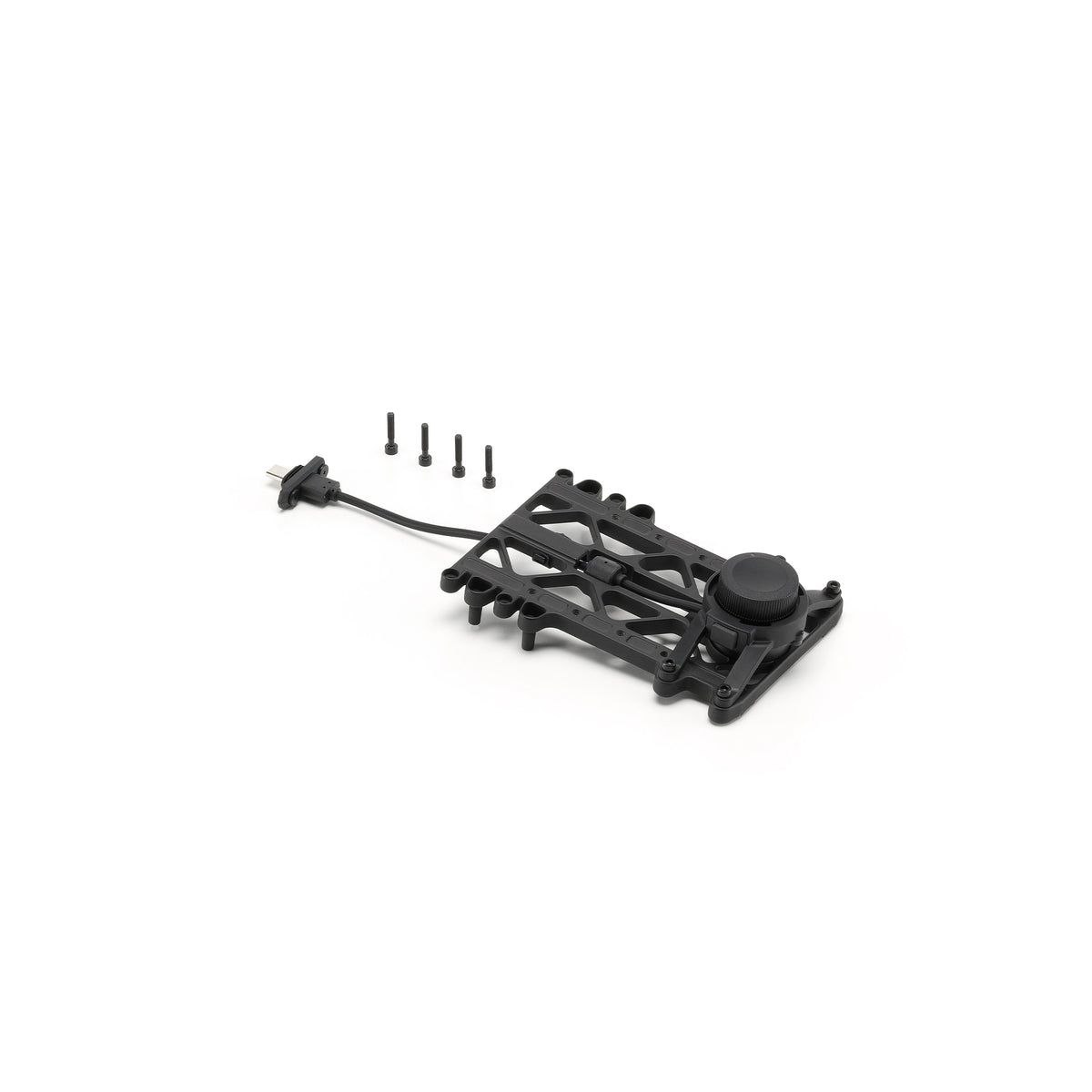

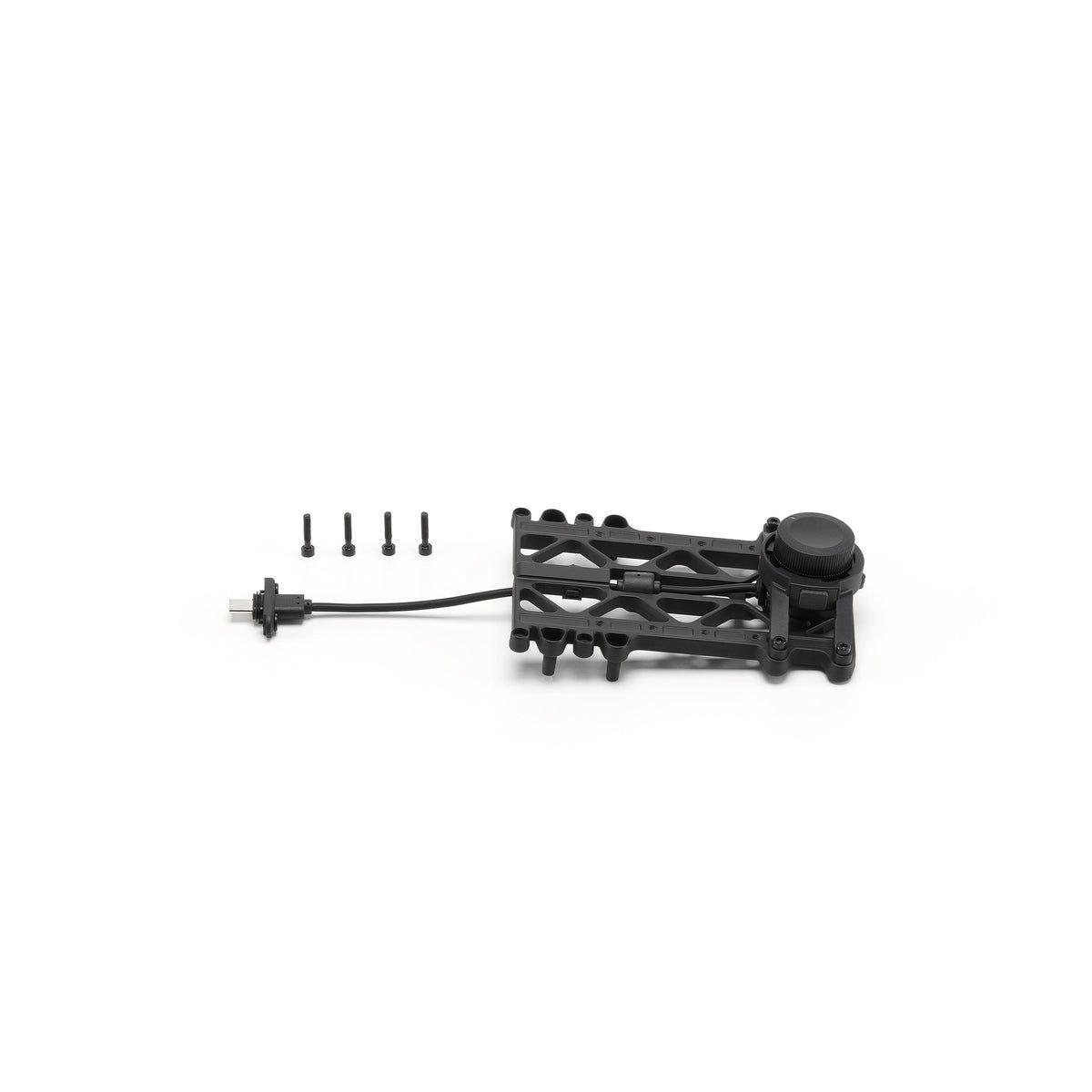

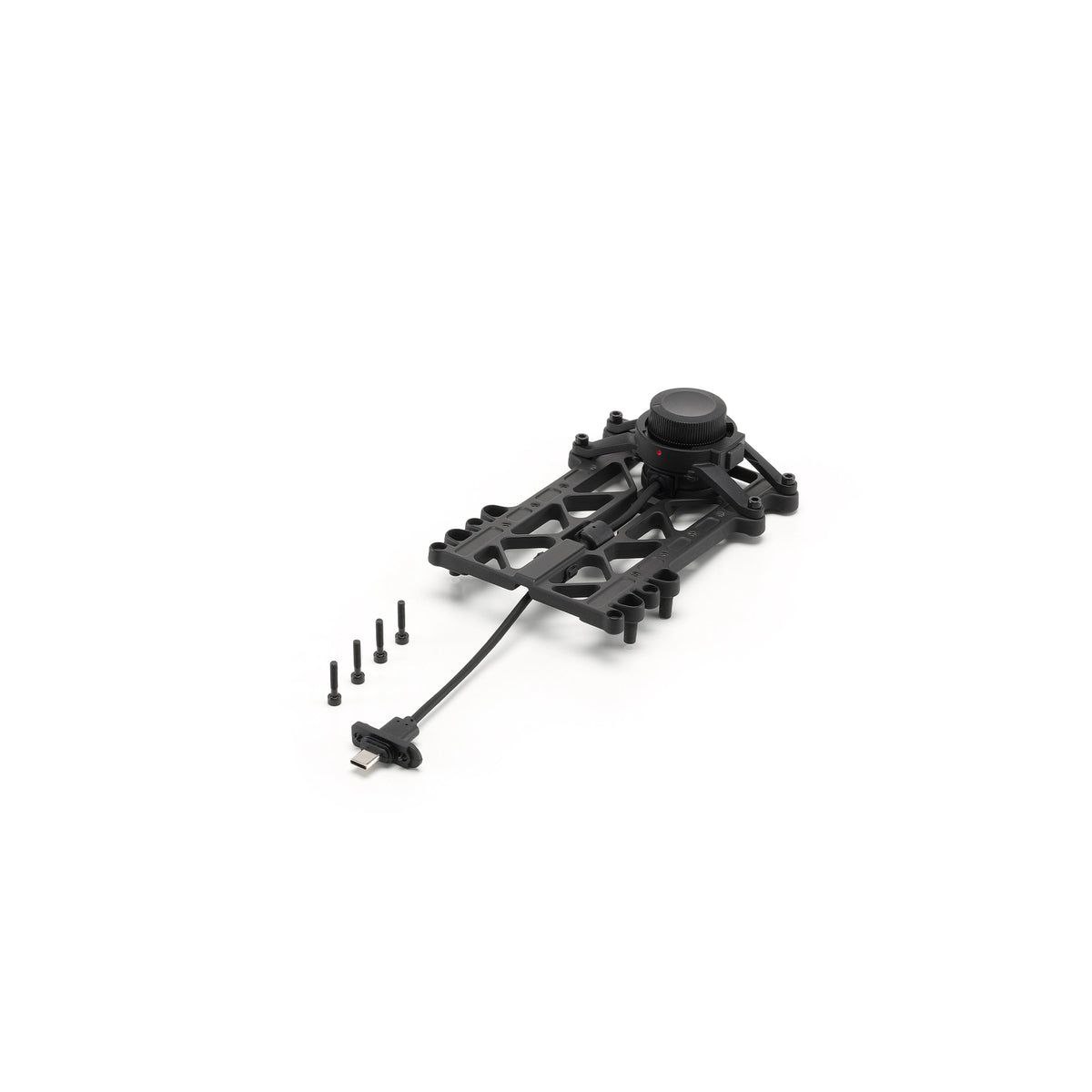

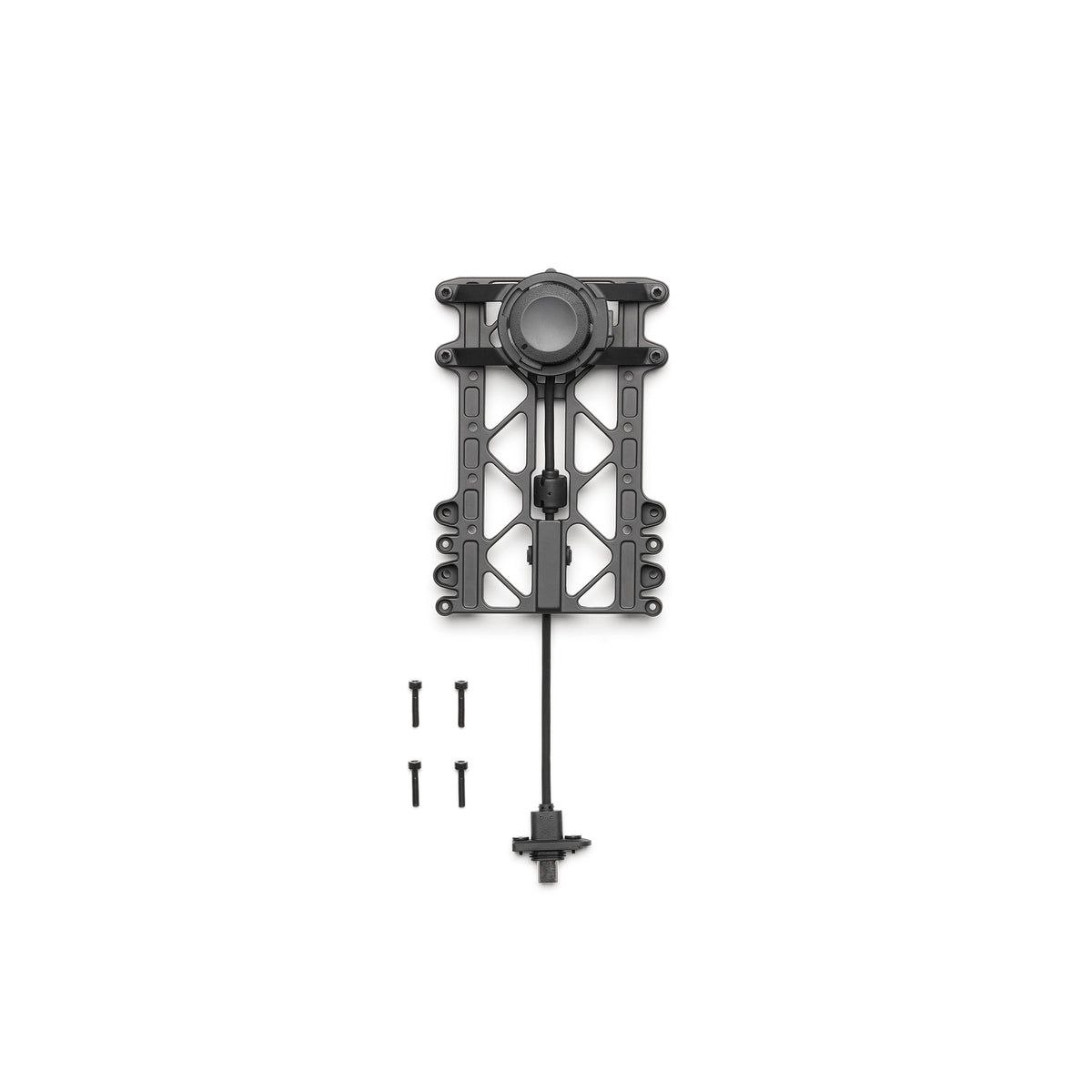

DJI Matrice 400 Third Gimbal Connector

DJI Matrice 400 Third Gimbal Connector

DJI engineered the DJI Matrice 400 Gimbal Connector to unlock the full multi-sensor potential of the M400 enterprise platform. First, this specialized hardware expansion enables the mounting of an additional underslung payload alongside your primary single or dual downward gimbal setup. Furthermore, it supports heavy-duty equipment with a maximum capacity of 6 kg when using the secure screw-lock fastening method. As a result, professional pilots can fly complex combinations of LiDAR, thermal, and high-resolution visual sensors in a single, highly efficient flight.

In addition, the connector integrates seamlessly with the aircraft’s power and data systems via the E-Port V2 (E3 or E4 ports). Specifically, it features built-in gyroscopic stabilization to ensure that your additional payload remains perfectly level and steady during high-speed maneuvers. Moreover, the bolt-on design allows for a secure, industrial-grade fit that maintains the drone’s aerodynamic balance. Ultimately, this accessory is the key to achieving up to seven simultaneous payloads on the Matrice 400. Therefore, the DJI Matrice 400 Gimbal Connector stands as a critical upgrade for professionals conducting advanced industrial inspections, search and rescue, or 3D mapping missions.

Key Features & Highlights

• Triple-Payload Workflow Efficiency: This connector allows you to mount a third stabilized sensor to your aircraft. Accordingly, you can capture thermal, RGB, and LiDAR data simultaneously, eliminating the need for repetitive flights and reducing operational costs.

• Massive 6 kg Load Capacity: The rugged interface supports up to 3 kg via the quick-release port or 6 kg via screw-lock fastening. Hence, you can safely deploy even the heaviest specialized industrial sensors or custom SDK hardware.

• Integrated Gyroscopic Stabilization: The mount actively compensates for aircraft movement and vibration. Furthermore, this ensures that your footage remains smooth and your data collection stays precise, even when flying in turbulent weather.

• Seamless E-Port V2 Integration: The connector links directly to the M400’s advanced data bus. Consequently, you maintain full control over the payload through the DJI Pilot 2 app, including real-time video transmission and parameter adjustments.

• Optimized Center-of-Gravity Balance: DJI designed the mounting position to sit at the bottom center of the airframe. Meanwhile, this preserves the flight characteristics and stability of the Matrice 400, ensuring safety even with asymmetric payload weights.

• Industrial-Grade Durability: The connector features a high-strength aluminum alloy build to withstand the rigors of field use. As a result, it survives the vibrations and environmental stresses typical of power line inspections and offshore missions.

• Developer SDK Compatibility: The interface supports UART, CAN, and PWM communication channels. Specifically, this allows third-party developers to create and mount custom sensors, lights, or tools using the DJI Payload SDK.

• Rapid, Tool-Free Installation Option: The quick-release mechanism allows for fast payload swaps in the field. Therefore, your team can adapt to changing mission requirements in seconds, keeping the DJI Matrice 400 Gimbal Connector at the heart of your flexible fleet
